| Uniform Configuration | ||
|
Cabin |
Cabin Material | TPU |
| Minimum Footprint | 1.6m2 | |
| Weight | 180kg | |

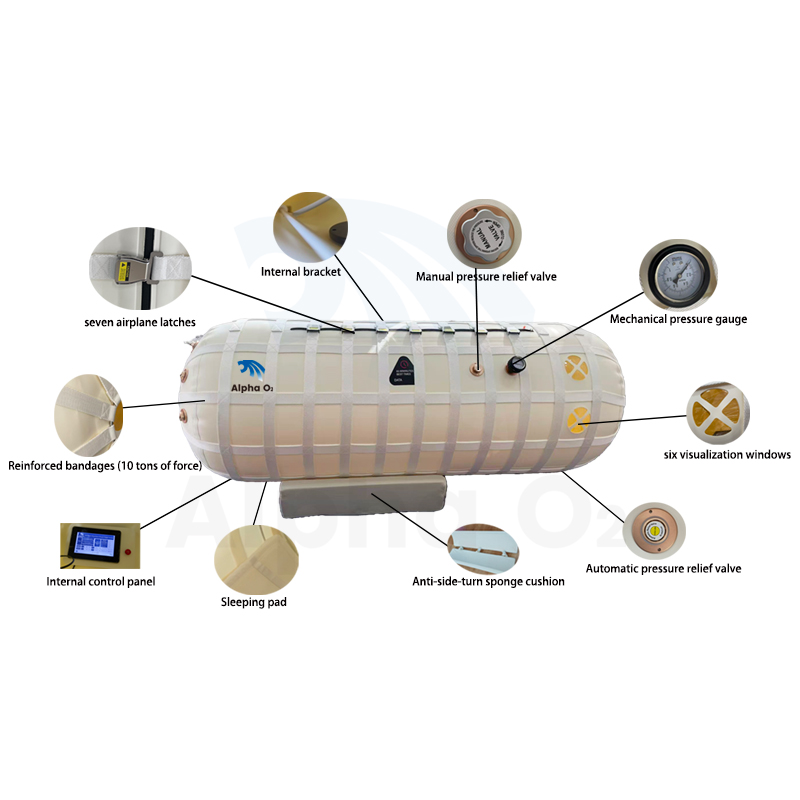

| Cabin Configuration | Internal Bracket, Oxygen Terminal, Cabin Blanket | |
| Diffused oxygen concentration | ≤23% | |
| Cabin temperature | Room temperature is about 3 degrees higher | |
| Cabin humidity | 26% | |
| Working pressure | 1 .1 ATA-2.0ATA | |
| Cabin noise | ≤20dB | |
|
Main unit |
Host size | 590*520*903 |
| Host control mode | Intelligent control | |
| Host Power | 220v/110v | |
| Host power | 1000w | |
| Oxygen pressure | 140kpa | |
| Operation Noise | ≤50dB | |
| Maximum Oxygen Concentration | 93% | |
|
Other |
Manual Safety Valve | yes |
| Automatic safety valve | yes | |
| In-cabin touch screen | yes | |
| Out-of-cabin touch screen | yes | |
| Product Model | Cabin size | |
| KS05 | KS0503 | L2100mm*D800mm |
| KS0505 | L2200mm*D850mm | |
